Drainage Board

Modew Drainage Technical Specifications and Application Guide

Technical Specifications

Features Modew Drainage 400 Modew Drainage 500 Modew Drainage 600
Raw Material HDPE HDPE HDPE
Thickness 0.4 mm 0.5 mm 0.6 mm
Embossing Depth 8.0 mm 8.0 mm 8.0 mm
Weight 450-500 g/m² 550-600 g/m² 650-700 g/m²
Compressive Strength 170 kN/m² 230 kN/m² 320 kN/m²
Subsurface Resistance Against impacts, plant roots, and all chemicals Against impacts, plant roots, and all chemicals Against impacts, plant roots, and all chemicals
Thermal Resistance Between -30 °C and +80 °C Between -30 °C and +80 °C Between -30 °C and +80 °C
Color Black Black Black
Roll Length 20 m 20 m 20 m
Roll Width 2 m 2 m 2 m

Application Guidelines

  • It should be fixed pointwise at intervals of approximately 20 cm along the upper part of the applied surface or secured to the surface using a clamping profile.

  • Care must be taken not to puncture the insulation during installation.

  • At joint connections, an overlap of at least 20 cm must be provided, and precautions should be taken by using additional fastening elements.

Category:

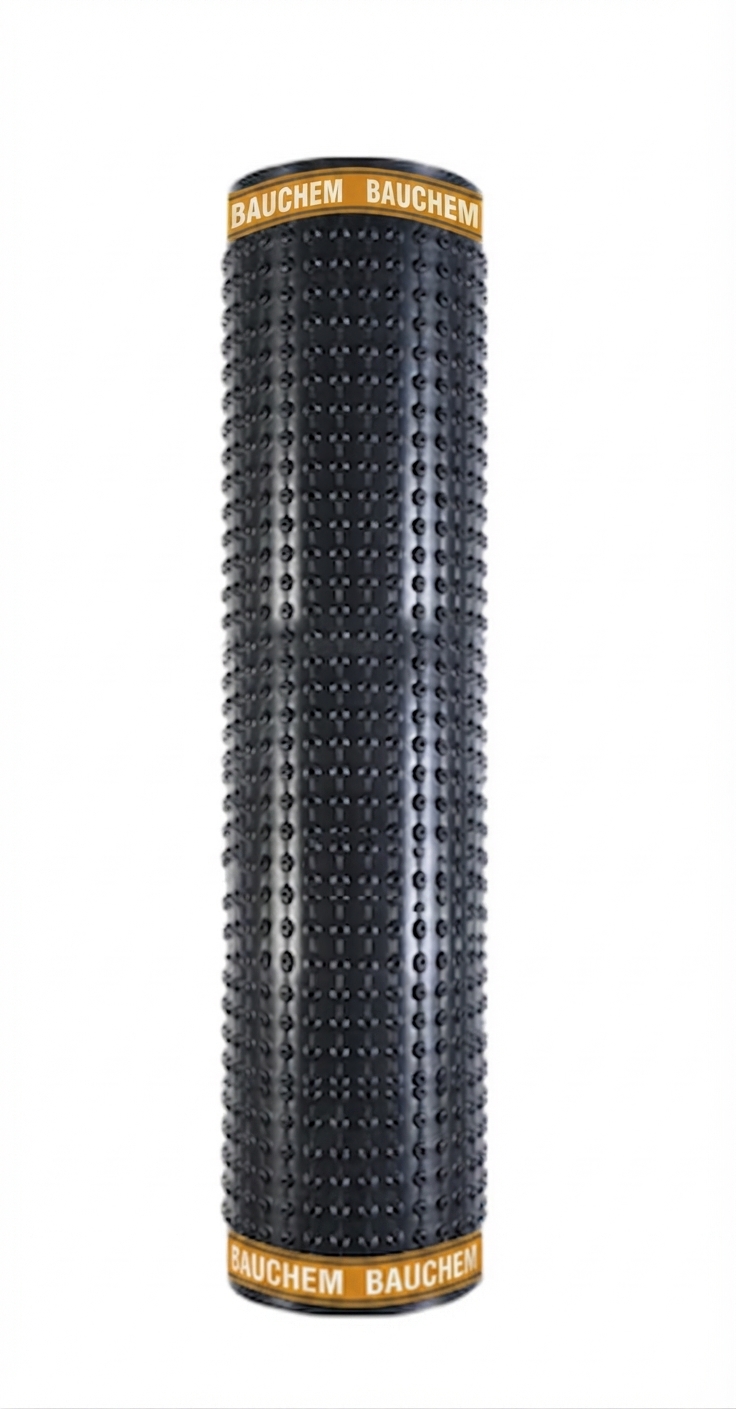

  • Product Description: Modew Drainage is a drainage and protective material with a bubbled profile produced from high-density polyethylene.

  • Advantageous Features:

    • In waterproofing systems, after building elements are made waterproof with polymer bituminous waterproofing covers, it is useful to remove water from the system.

    • Modew Drainage, which is produced from high-density polyethylene and has a bubbled profile, is used in removing water from the system and protecting insulation layers.

    • The drainage volume between the bubbles allows for easy and fast drainage.

  • Areas of Use:

    • In foundations, curtains, terrace roofs, and floors.

    • Used for water removal in highways, railways, and tunnels.
